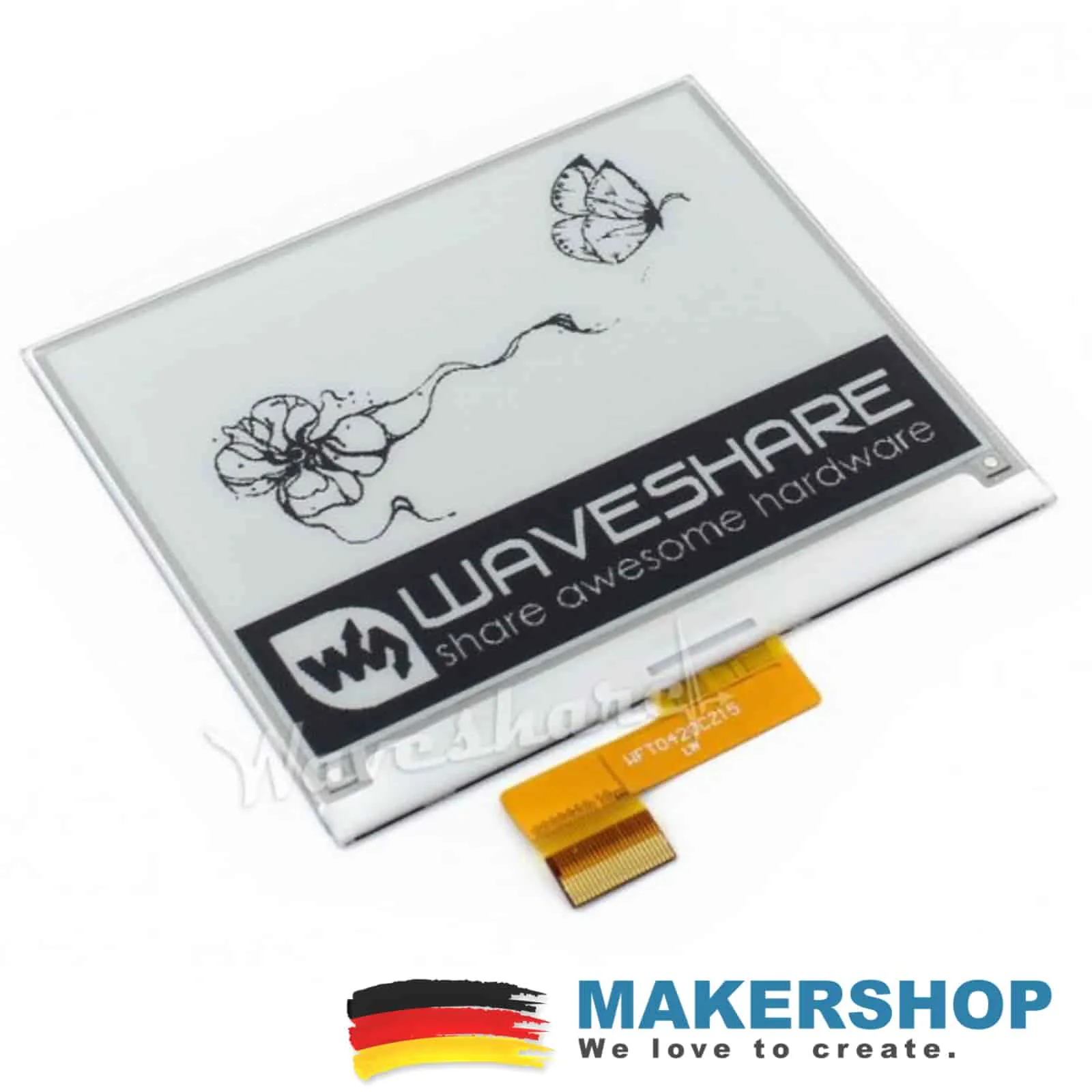

4.2inch E-Ink Raw Waveshare SPI Display Arduino Raspbery Pi – 13186

Beschreibung

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

• Operating voltage: 3.3V
• Interface: 3-wire SPI, 4-wire SPI
• Outline dimension: 90.1mm × 77.0mm × 1.18mm
• Display size: 84.8mm × 63.6mm
• Dot pitch: 0.212 × 0.212
• Resolution: 400 × 300
• Display color: black, white
• Grey level: 2
• Full refresh time: 4s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°
