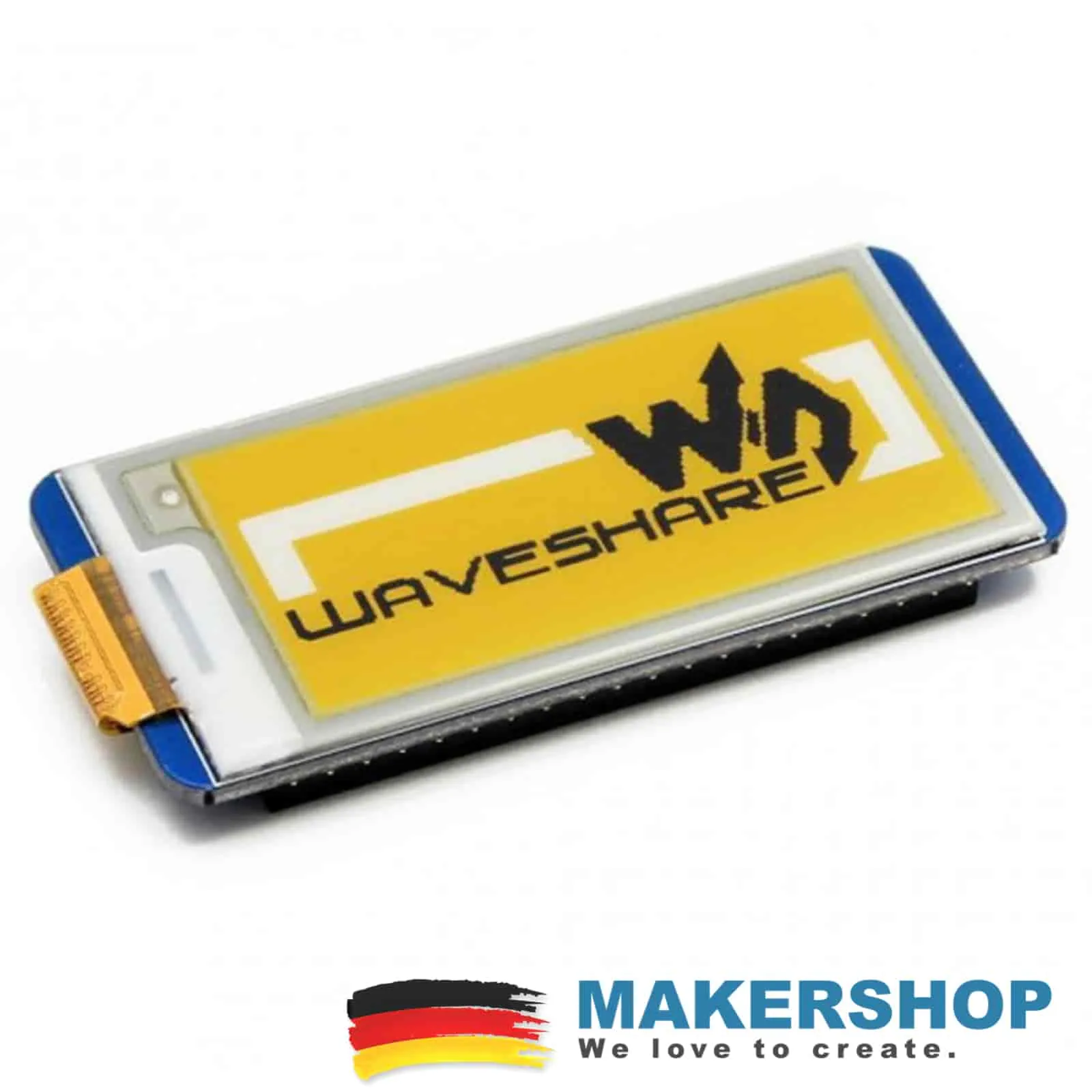

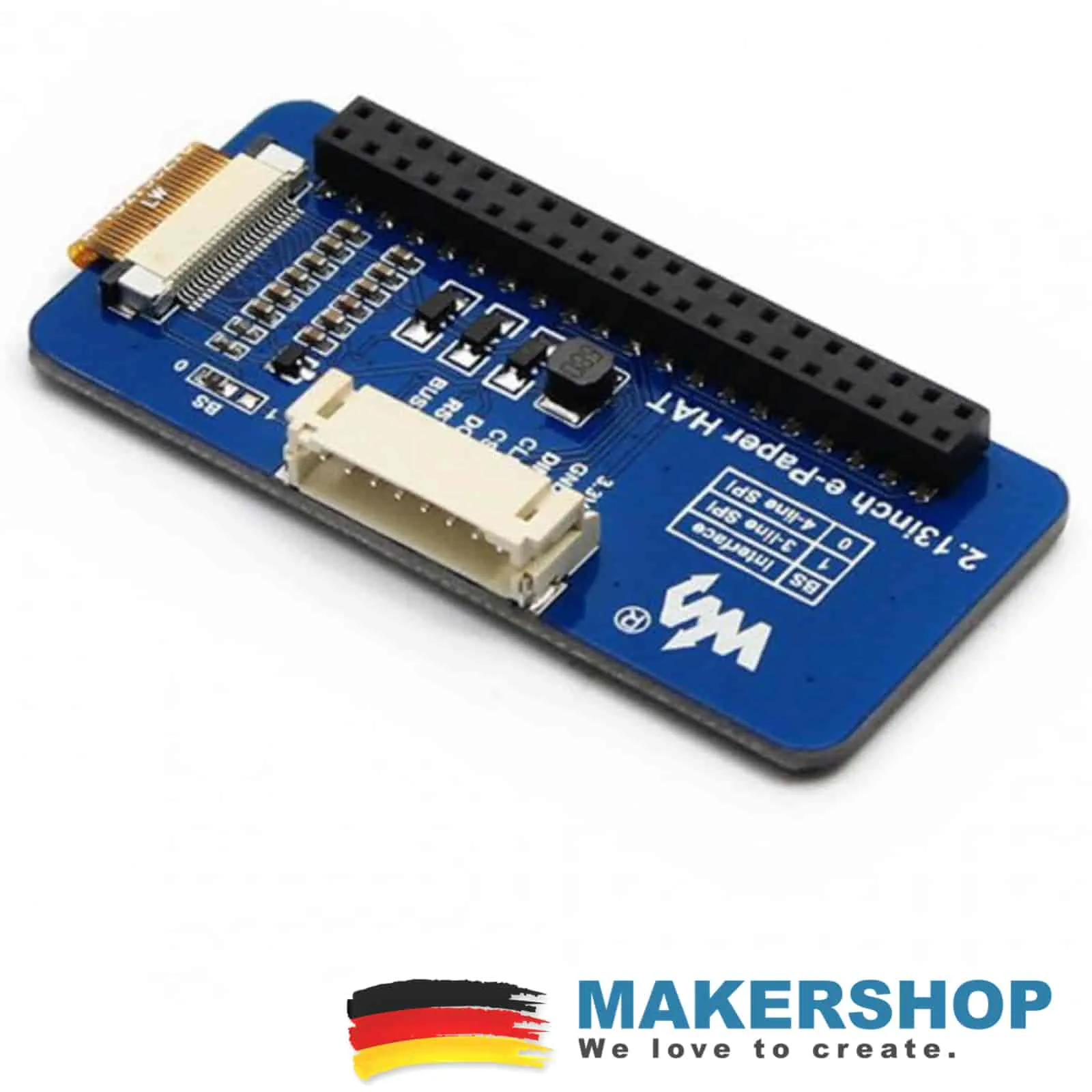

2.13inch e-Paper HAT (C) Features
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
- Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
2.13inch e-Paper HAT (C) Specifications
- Operating voltage: 3.3V/5V
- Interface: 3-wire SPI, 4-wire SPI
- Outline dimension: 65mm × 30.2mm
- Display size: 23.71mm × 48.55mm
- Dot pitch: 0.229 × 0.228
- Resolution: 212 × 104
- Display color: yellow, black, white
- Grey level: 2
- Full refresh time: 15s
- Refresh power: 26.4mW(typ.)
- Standby power: <0.017mW
- Viewing angle: >170°
